Connect HST/32V with 64 Channel NeuroNexus® Probe

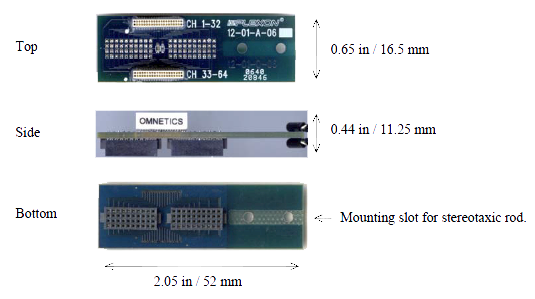

This adaptor allows you to connect two Plexon 32 channel headstages to one 64-channel acute probe or one 54-channel ploytrode probe from NeuroNexus® Technologies. The adaptor features a mounting slot and holes to facilitate mounting the adaptor on a 5/16″ or 8 mm diameter stererotaxic rod.

Technical Specs

Typical Application:



























Specifications:

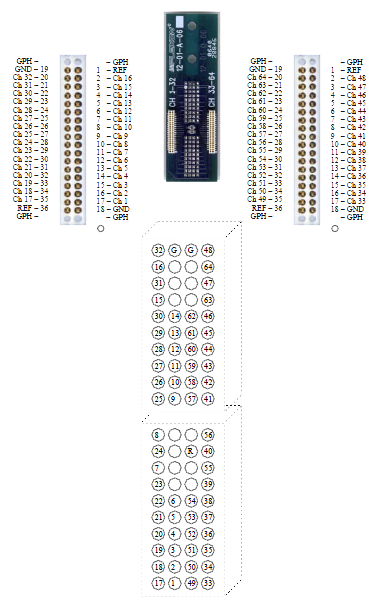

Pinout / Channel map:

  • Use this channel map together with the probe specific site map to determine the recording channel corresponding to each recording site on the probe.
