OmniPlex Neural Recording Data Acquisition System
OmniPlex® Neural Recording Data Acquisition System is Plexon’s flagship electrophysiology (a.k.a. ephys) research system. This system combines front-end amplification and acquisition with intuitive and powerful control and visualization software.
OmniPlex Neural Recording Data Acquisition System
The OmniPlex System is a compact, flexible platform for high performance data acquisition and powerful online spike sorting. It offers low latency, superior common-mode rejection amplification and is well known for its user-friendliness. The OmniPlex System is a combination of the OmniPlex chassis, OmniPlex Software, and a Digital Headstage Processor (DHP) acquisition subsystem – all described below. Other versions of the OmniPlex system could utilize an OmniAmp or DigiAmp A/D device.
- The compact OmniPlex chassis is available in two sizes, Rack Mounted and Table Top, and houses cards for synchronization and timing between system components, acquisition subsystem links, digital inputs, and auxiliary analog inputs for non-neural experiment signals.
The OmniPlex System Controller operates the OmniPlex Software consisting of OmniPlex Server, the “software engine” for neural signal processing, and PlexControl, which is the main user interface providing data visualization and the user interface for interacting with the system.

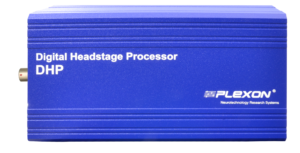

- The Digital Headstage Processor (DHP) for use with digital headstages is Plexon’s most advanced acquisition subsystem. The DHP now enables up to 512 channels of neural recording, decreased sensitivity to ambient electrical noise, and lighter headstage cables with fewer wires for greater freedom of animal movement. Further, it offers real-time upsampling to 40KHz and adjustment of multiplexer timing offsets (equivalent to simultaneous sampling) for improved sorting quality, trodal acquisition and software referencing – unlike other digital headstage based systems.
- Alternatively, the predecessor to the DHP is Plexon’s DigiAmp™ acquisition subsystem for analog headstages. The DigiAmp Digitizing Amplifier is available in two sizes: the MiniDigi™ for 16, 32, 48 and 64 channels, and the DigiAmp for 64, 128, 192 and 256 channels. This acquisition subsystem is recommended when using analog headstages. Both provide 16-bit A/D conversion at 40kHz per channel for acquisition of the complete wide-band signal. Flexible digital filtering supports a wide variety of filter types (Bessel, Butterworth, Elliptic, 2-12 poles, plus adaptive power line noise filter) and cutoff frequencies, for extracting spikes and field potentials from the wide-band signal and for noise removal.
- The DHP and the DigiAmp digitizing amplifier are both electrically isolated.
- All acquisition subsystems can be remotely located up to 25 feet from the OmniPlex chassis for convenience in placing at behavioral enclosures, arenas, rooms, etc. The acquisition subsystem is self-contained; no power cords needed.
Sorted spike and continuous data acquired by the OmniPlex System is available to external clients (developed through the C/C++ or MATLAB® software development kits (SDKs) as soon as 1-2 milliseconds after acquisition. This figure is the actual end-to-end latency through the entire OmniPlex System from spike detection input to hardware output, including an online user client program.
The DigiAmps and all modules in the chassis are synchronized via a high-resolution master timing module. The same master timing module can be extended to synchronize timestamps with compatible equipment such as Plexon’s CinePlex® Behavioral Research System.
Learn more about the the powerful online spike sorting software for the OmniPlex System that has a flexible and customizable main user interface.
A Plexon Sales Engineer is happy to discuss your needs and how the OmniPlex could best support your ephys research goals.
Selected technical specifications for the OmniPlex System are provided below. A Plexon Sales Engineer is happy to discuss your needs and how the OmniPlex could best support your neural recording and ephys research goals.
| Features | Specifications and Options | Remarks |
| Subsystems | – Digital Headstage Processor (DHP) acquisition subsystem – DigiAmp™ Digitizing Amplifier acquisition subsystem | – DHP acquisition subsystem required for use with digital headstages – DigiAmp acquisition subsystem required for use with analog headstages |
| A/D input conversion | 40kHz per neural channel at 16-bit resolution | – Simultaneous sampling – Continuous wide-band recording on all neural channels |
| Timestamping | 25µsec (40kHz) | |
| Filtering | – Software selectable digital filtering – 2-12 pole filters, Butterworth, Bessel or Elliptic; notch filter | For isolation of field potential and spike frequency bands |
| Referencing | Digital selected channel referencing including: – Common Average Referencing (CAR) and – Common Median Referencing (CMR) | For online noise and artifact removal |
| Digital Inputs | up to 64 channels | Up to four 16 channel ports, individual TTL and/or strobed word data |
| Auxiliary non-neural A/D inputs | 32 channels | 16 bit A/D conversion for auxiliary non-neural signals, 250kHz max rate (with “fast” card) |
| Trodal sorting support | Stereotrode and tetrode | |
| Channel mapping | User-definable mapping sets | |
| Spike sorting | Automatic online in waveform space or directly in 2D/3D feature space | – Waveform space includes time/voltage using boxes, templates, lines or bands – Feature space includes PCA, peak/valley and more – Powerful graphical tools for manually defining and adjusting sorting parameters online |
| File type recorded | Plexon .PL2 and .PLX files | Utility provides conversion between formats |
| Compatibility | – Plexon MATLAB®/C++ online and offline SDKs – PlexNet (TCP/IP or UDP), and – NeuroExplorer® online link | |
| Chassis dimensions (inches) | Rack Mounted: 7 1/4 x 13 7/8 x 19 1/8 Table Top: 7 1/4 x 12 1/2 x 9 3/4 |
Installation Packages/Upgrades
- OmniPlex Release 1.20.2.1 – Windows 7 and Windows 10* Post date August 2022
PlexControl

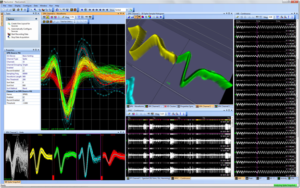

PlexControl is the powerful online spike sorting software for the OmniPlex System that has a flexible and customizable main user interface. The software represents the next generation in signal visualization and easy-to-use spike waveform classification methods, and allows the researcher to interact with the system. It features easy-to-use signal visualization, spike detection and sorting algorithms. Many spike sorting methods are available including: box, template, line, band sorting in time/voltage space and contour sorting in PCA feature space. A spike waveform snapshot of user-defined size is automatically acquired on each channel by the PlexControl program, and may be viewed at any time to revise spike sorting parameters as necessary. Units can be defined based on either snapshots of the live data or by “drawing” directly on the live data in real time. Each method may be used to sort single electrodes, stereotrodes and tetrodes online.
Continuous spike, field potential and wide-band signals are conveniently displayed in PlexControl’s flexible, customizable user interface along with detected spike waveform segments and their associated two-dimensional (2D) and three-dimensional (3D) feature space clusters for online spike sorting. Additionally, all three data types, as well as thresholded spike waveform segments and digital event data, may be recorded to disk on a per-channel basis.
Check out some of the highlighted features of the software
- Line Sorting
- 2D Polygon Sorting
- MultiPlex View
- 2D and 3D Spectrograms
- Ability to Swap Selected Units
OmniPlex Server
The OmniPlex Server is the “engine” under PlexControl. It visually displays each of the various hardware devices (e.g., headstages, amplifier) and software modules (e.g., spike and LFP separators, thresholding, sorting) of the system. It acquires data from the OmniPlex chassis and amplifiers, sends commands to those devices, and implements the software digital signal processing (DSP) for OmniPlex’s filtering, spike detection and spike sorting functions. OmniPlex Server is based on a modular, extensible framework – or topology – hardware and software devices, which are interconnected in a dataflow topology that utilizes a topology wizard to enable users to easily define custom configurations without tedious low-level editing.
The OmniPlex Software is compatible with Plexon’s MATLAB® and C/C++ APIs and Client Development Kits (SDKs), and the online NeuroExplorer® link – enabling low latency, closed-loop experiments and online analysis of live data. It can also be further enhanced by Plexon’s PlexNet protocol supporting remote online data access across any TCP/IP or UDP network, and PlexUtil for modifying the OmniPlex Software output .PLX data files. Additionally, flexible digital filtering functionality in OmniPlex is also incorporated in the Offline Sorter program, enabling the user to apply the same filters offline to continuously sampled data as is used online.
OmniPlex Software, arrives pre-loaded on the control computer with the purchase of any OmniPlex System. A demo version of the OmniPlex Software, which can be run without the OmniPlex hardware, is available at the top of this page.
If you have additional questions, a Plexon Sales Engineer would be more than happy to discuss them with you.
| Features | Specifications and Options | Remarks |
| Recording file formats | Plexon (.PL2, .PLX) | |
| Spike detection methods | Voltage threshold | |
| Spike sorting methods | – Manual methods include: template, line sorting, band sorting, box sorting, 2-D polygon sorting – Automatic methods include: template, band sorting, 2-D polygon sorting. | |
| Features available for sorting | – Projections onto principal components (PCA) – For stereotrode and tetrode data, per-electrode features | |
| Views available | – Wideband continuous – Spike continuous – Field potentials – Spike waveforms – 2D PCA clusters – 3D PCA clusters – Stereotrode and tetrode features – Spike activity – Firing rate – Sorted units – Peak histogram – NEW 3D spike sample histogram | |
| Electrode support | Single, stereotrode and tetrode | Acquire and online sorting. |
| Platform | Windows® 7 and Windows® 10 | |
| Activation requirement | Plexon version-specific hardware license key | When OmniPlex® is ordered, it comes with 2 license keys. Additional keys may be purchased. |
Manuals/User Guides
- OmniPlex User Guide Release 20 Includes features up to Release 20
- OmniPlex Version 1.16.1 Demo Guide Post date April 17, 2017
Installation Packages/Upgrades
- OmniPlex Release 1.20.2.1 – Windows 7 and Windows 10* Post date August 2022
Support Videos
- OmniPlex Highlighted Software Features
- How to Create a Topology with OmniPlex
- OmniPlex Release 17
- Online Neural Data Processing With Plexon’s OmniPlex Webinar
- Line Sorting
- MultiPlex
- 2D Polygon Sorting
- 2D and 3D Spectrogram
- Add Comments During PL2 Recordings
- Ability to Swap Selected Units
Change Log
- OmniPlex Change Log Post date January 2022
Guides and How To Papers
- OmniPlex Digital Input Guide Please see Chapter 9 of the OmniPlex User Guide for information about the Digital Input card
- Integrating OmniPlex and CinePlex V3
- OmniPlex 64 channel to 128 channel upgrade procedure Analog version only
- PL2 File System Overview
- OmniPlex Windows 10 Migration Guide
Technical Specs and Data Sheets
- OmniPlex Circuit Diagram Analog version only
- OmniPlex Neural Recording Data Acquisition System Data Sheet
Demos
- OmniPlex Version 1.20.0 Demo Post date March 2021
*Must use the OmniPlex Windows 10 Migration Guide in order to upgrade to Windows 10
