NeuroLight Stimulator System

NeuroLight Stimulator System

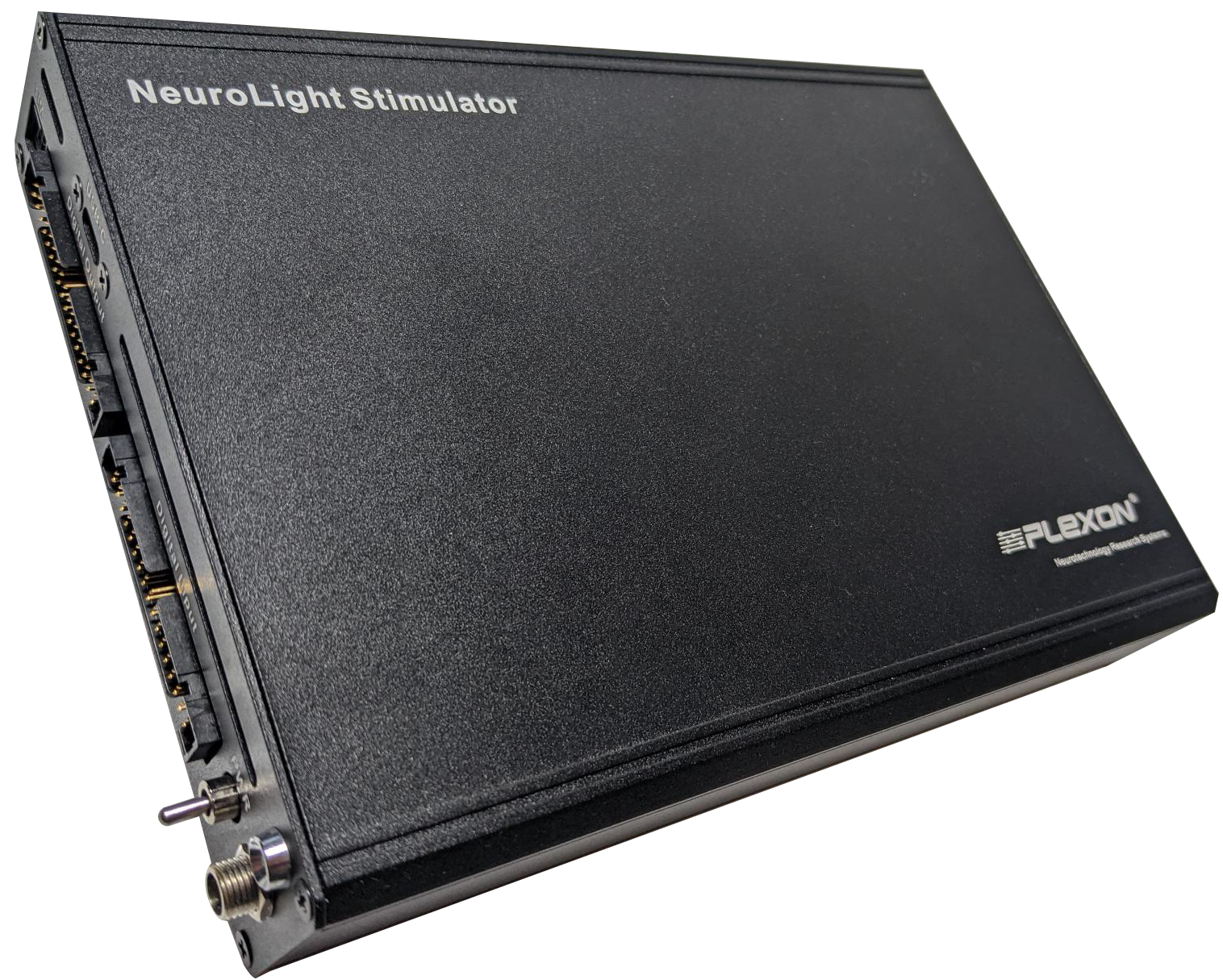

The Plexon NeuroLight Stimulator is a USB3 device designed specifically for current stimulation of µLEDs on up to four NeuroLight Optoelectrode probes. With the NeuroLight Stimulator, you can control each of the twelve µLEDs individually, in groups, or all together.

Features

Current output range: 0-100microA
Compatible with OmniPlex and other data acquisition systems
Compatible with Carousel commutators
GUI control for all µLEDs
- Grouped control
- Independent control
Pattern generation, with constants and ramps
For use with our 12 channel µLED NeuroLight stimulating headstage
Digital inputs for automatic control
Programmable Digital outputs for time-locking with neural recordings
External control of stimulating start/stop

Feature	Specifications and Options	Remarks
Hardware	– NeuroLight Stimulator Box
Electrode Compatibility	– NeuroLight or other optoelectrode	Contact Sales Engineer to ask if your optoelectrode is compatible
Number of Parallel Headstages	1-4	Up to 4 µLED stimulating headstages can be used simultaneously.
Analog output channels	Up to 4	Each channel offers independently controllable output.
µLED synchronization	Capable	µLEDs can be stimulated individually, in groups or all together.
Stimulation modes	Current
Current output	0-100mA	Current output for driving optoelectrodes.
Voltage output	0 to 5V	Voltage output for controlling a third-party laser.
Temporal resolution	100μs
Digital inputs	32	Flexible mapping between digital inputs and channels. May be used to start and stop stimulation on individual channels. *See pin map below
Digital outputs	32	Flexible mapping between digital outputs and channels.*See pin map below
Minimum trigger pulse width	200μs
Arbitrary waveform update rate	10kHz
Commutator compatibility	– Carousel Commutator R2S2-Vertical
Dimensions	152 x 218 x 46 mm 5.98 x 8.58 x 1.8 inches	Includes feet, switches, and connectors in length and height.
Weight	0.72 kg 1.6 lbs
NeuroLight Stimulator includes	– µLED Stimulator box – USB Type-C to USB-A 3.1 Cable – Power Supply

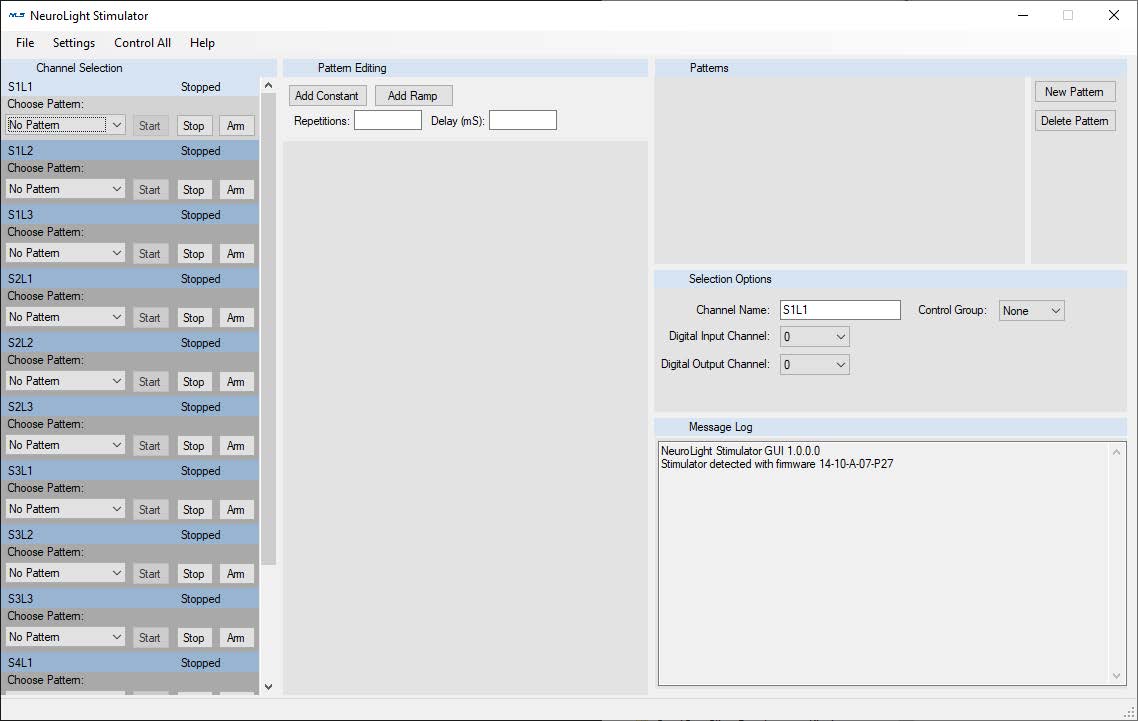

Software	NeuroLight Stimulator Software
Pattern generation	Capable	NeuroLight Stimulator Software is capable of generating complex signal patterns independently per µLED.
Operating Systems	Windows 7, or Windows 10
Minimum Amplitude	0.4 μA
Maximum Amplitude	100μA
Amplitude Resolution	0.4μA
Minimum Pulse Duration	10μs

Digital Inputs

The NeuroLight Stimulator channels can be started and stopped through the digital input pins on the stimulator hardware.
Each channel has a corresponding digital input pin. A high (+3.3V) level on a pin will start the channel assigned to that pin, and a low (0V) level will stop the channel.
The channel will only start if it’s armed.

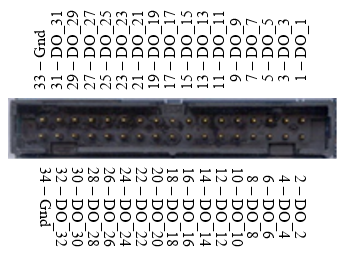

Digital Outputs

The NeuroLight Stimulator channels can be monitored through the digital output pins on the stimulator hardware.
By default, the DO pin for each channel goes high (+3.3V) when that channel is playing, and low (0V) when it is stopped. This behavior can be altered in the settings.

The NeuroLight Stimulator in combination with optoelectrodes such as the NeuroLight Optoelectrode allows for simultaneous recording and optogenetic stimulation.

The firmware allows current waveforms to be stored in the Stimulator and played back through the headstages on demand to illuminate the micro LEDs on the probe for Optogenetic stimulation. Some possible waveform examples are shown below:

The Plexon NeuroLight Stimulator is a USB3 device designed specifically for current stimulation of µLEDs on up to four NeuroLight Optoelectrode probes. With the NeuroLight Stimulator, you can control each of the twelve µLEDs individually, in groups, or all together.

Features

Current output range: 0-100µA
Compatible with OmniPlex and other data acquisition systems
Compatible with Carousel commutators
GUI control for all µLEDs
- Grouped control
- Independent control
Pattern generation, with constants and ramps
For use with our 12 channel µLED NeuroLight stimulating headstage
Digital inputs for automatic control
Programmable Digital outputs for time-locking with neural recordings
External control of stimulating start/stop

Feature	Specifications and Options	Remarks
Hardware	– NeuroLight Stimulator Box
Electrode Compatibility	– NeuroLight or other optoelectrode	Contact Sales Engineer to ask if your optoelectrode is compatible
Number of Parallel Headstages	1-4	Up to 4 µLED stimulating headstages can be used simultaneously.
µLED synchronization	Capable	µLEDs can be stimulated individually, in groups or all together.
Stimulation modes	Current
Current output	0-100μA	Current output for driving optoelectrodes.
Temporal resolution	25μs
Digital inputs	32	Flexible mapping between digital inputs and channels. May be used to start and stop stimulation on individual channels. *See pin map below
Digital outputs	32	Flexible mapping between digital outputs and channels.*See pin map below
Minimum trigger pulse width	25μs
Arbitrary waveform update rate	40kHz
Commutator compatibility	– Carousel Commutator R2S2-Vertical
Dimensions	152 x 218 x 46 mm 5.98 x 8.58 x 1.8 inches	Includes feet, switches, and connectors in length and height.
Weight	0.72 kg 1.6 lbs
NeuroLight Stimulator includes	– µLED Stimulator box – USB Type-C to USB-A 3.1 Cable – Power Supply
Software	NeuroLight Stimulator Software
Pattern generation	Capable	NeuroLight Stimulator Software is capable of generating complex signal patterns independently per µLED.
Operating Systems	Windows 7, or Windows 10
Minimum Amplitude	0.4 μA
Maximum Amplitude	100μA
Amplitude Resolution	0.4μA
Minimum Digital Input Pulse Width	1μs
Minimum Digital Output Pulse Width	25μs

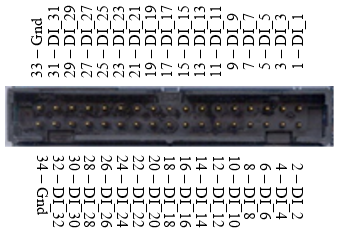

Digital Inputs

The NeuroLight Stimulator channels can be started and stopped through the digital input pins on the stimulator hardware. There are 32 digital inputs on the NeuroLight Stimulator. There are two modes of operation: single-bit mode and strobed word mode.

Digital Outputs

The NeuroLight Stimulator channels can be monitored through the digital output pins on the stimulator hardware. There are 32 digital outputs in the NeuroLight Stimulator. Each digital output can be mapped to one particular output channel and can be configured to report one of three things: whether the channel is actively playing a pattern, actively playing a waveform, or whether the output is non-zero. By default, the DO pin for each channel goes high (+3.3V) when that channel is playing, and low (0V) when it is stopped. This behavior can be altered in the settings.

The NeuroLight Stimulator in combination with optoelectrodes such as the NeuroLight Optoelectrode allows for simultaneous recording and optogenetic stimulation.

The firmware allows current waveforms to be stored in the Stimulator and played back through the headstages on demand to illuminate the micro LEDs on the probe for Optogenetic stimulation. Some possible waveform examples are shown below:

Accessories

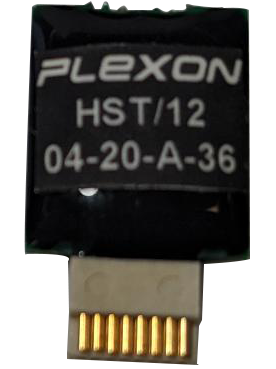

Headstage

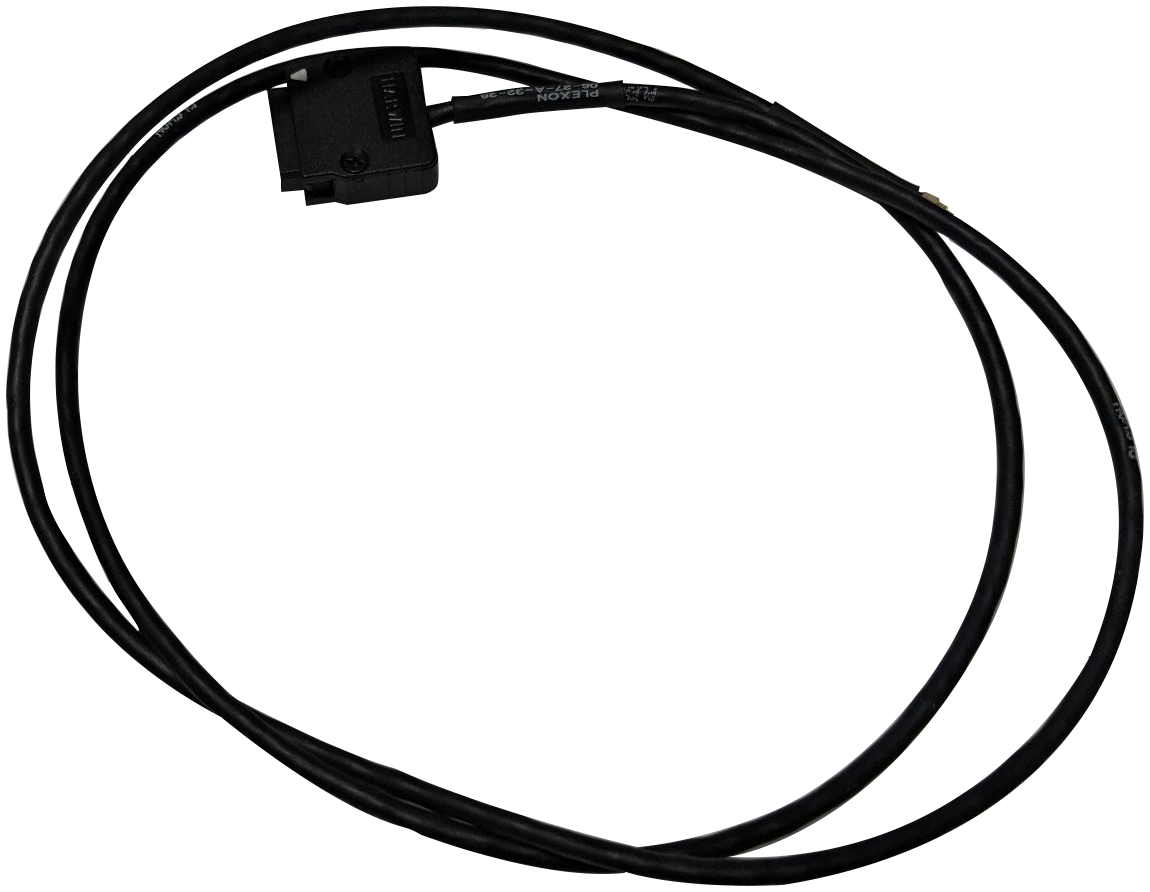

Headstage Cable

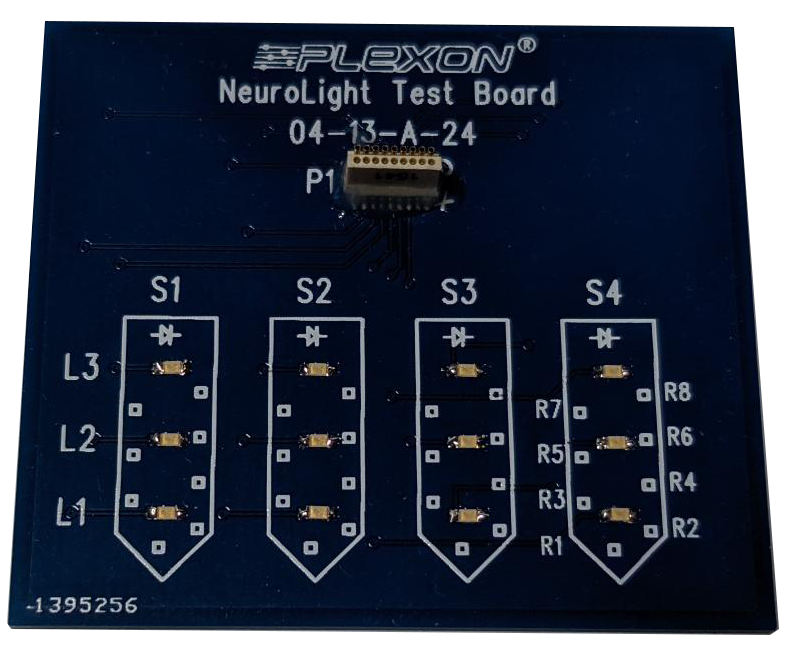

Headstage Tester Unit

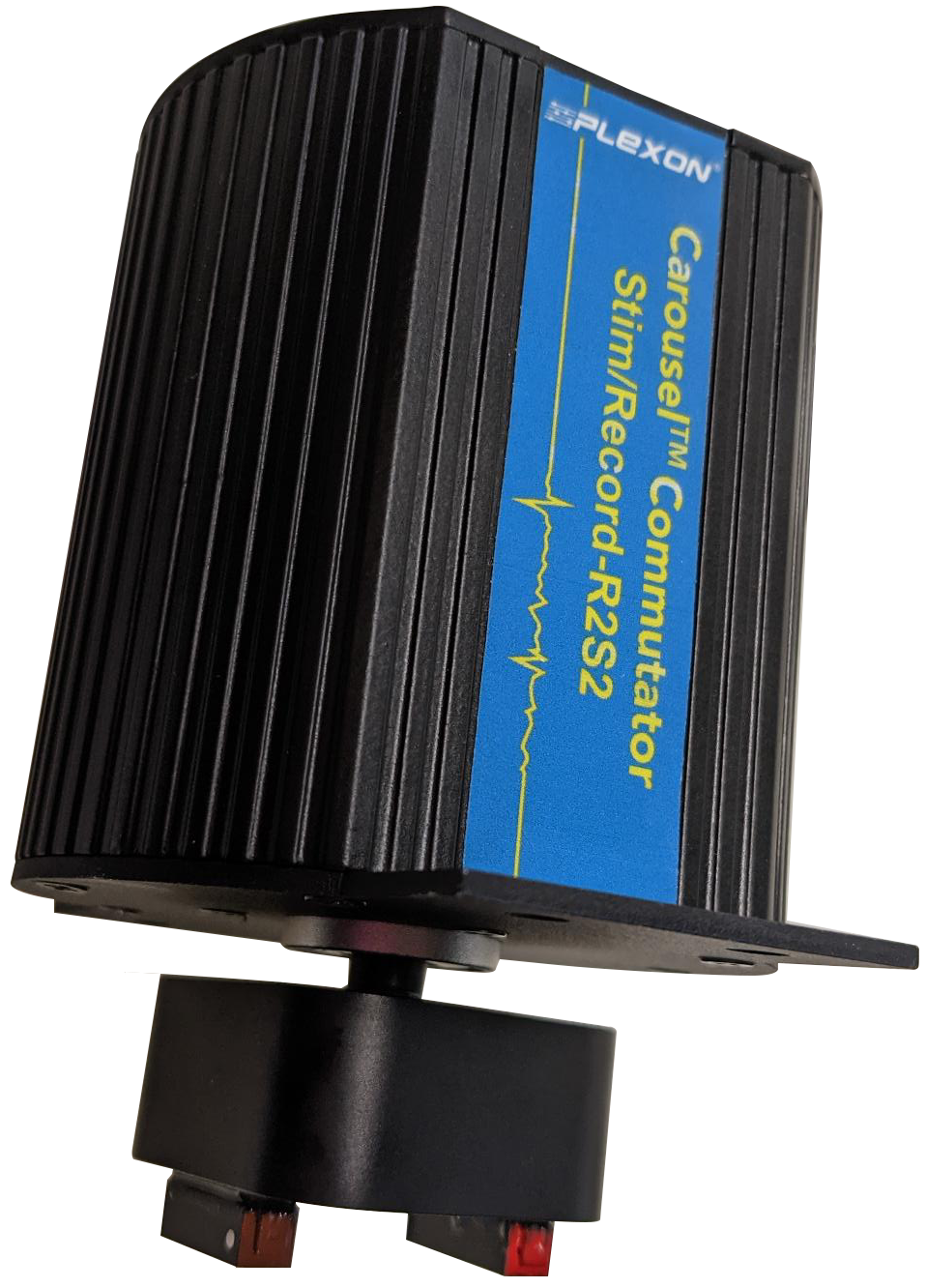

Carousel Commutator R2S2-Vertical

Accessories

Headstage

Headstage Cable

Headstage Tester Unit

Carousel Commutator R2S2-Vertical

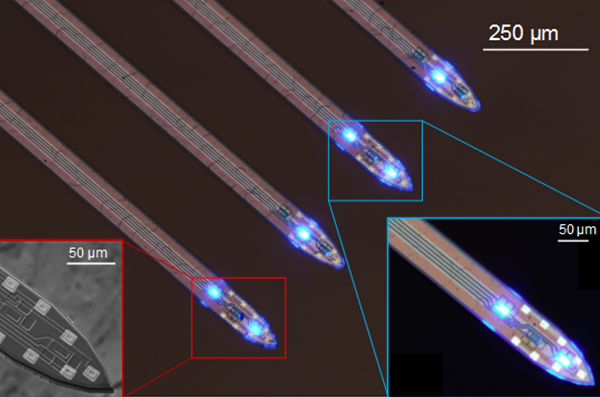

Compatible with the NeuroLight Optoelectrode

These optoelectrodes have recording sites and precisely defined µLEDs, allowing for simultaneous recording and local optogenetic stimulation.

12 µLEDs, 10 x 15 µm each, 3 per shank
32 recording channels, 8 per shank

Learn More

Compatible with the NeuroLight Optoelectrode

These optoelectrodes have recording sites and precisely defined µLEDs, allowing for simultaneous recording and local optogenetic stimulation.

12 µLEDs, 10 x 15 µm each, 3 per shank
32 recording channels, 8 per shank

Learn More

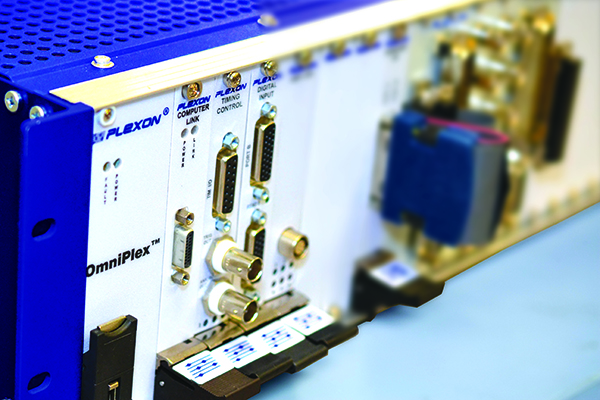

Integrate with Electrophysiology

It seamlessly integrates with our OmniPlex Neural Recording System to create time-locked events in the recording data. Additionally, when paired with the specially designed R2S2 commutator, the NeuroLight Stimulator can be used to drive µLEDs in awake and behaving animals.

Learn More

Integrate with Electrophsyiology

It seamlessly integrates with our OmniPlex Neural Recording System to create time-locked events in the recording data. Additionally, when paired with the specially designed R2S2 commutator, the NeuroLight Stimulator can be used to drive µLEDs in awake and behaving animals.
