OmniPlex Chassis
OmniPlex® Neural Recording Data Acquisition System is Plexon’s flagship electrophysiology (a.k.a. ephys) research system. This system combines front-end amplification and acquisition with intuitive and powerful control and visualization software.
**OmniPlex Release 20 now available. Learn about the new features.
OmniPlex Chassis Versions Compared

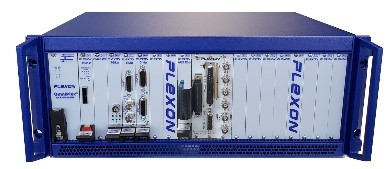

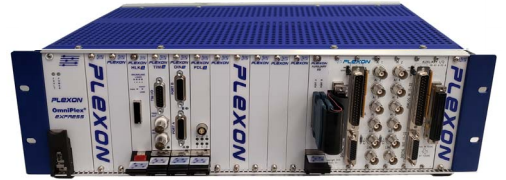

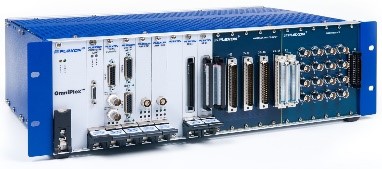

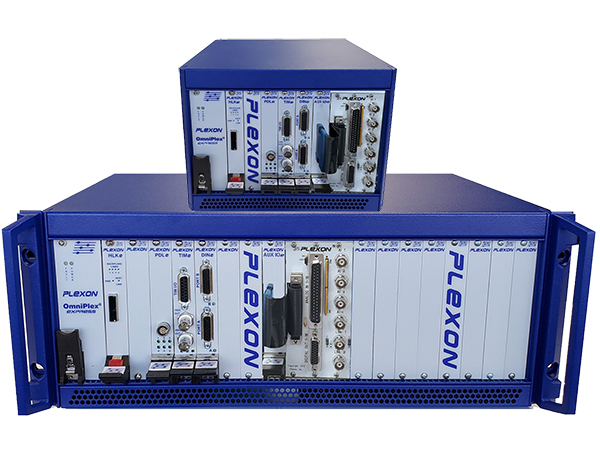

| Chassis Type | pChassis | Hybrid eChassis | Rack Mounted eChassis | Table Top eChassis |
|---|---|---|---|---|
 |  |  |  | |
| Dimensions (Inches) | 5 1/2 x 13 7/8 x 19 | 5 1/2 x 13 7/8 x 19 | 7 1/4 x 13 7/8 x 19 1/8 | 7 1/4 x 12 1/2 x 9 3/4 |
| Rack Mountable | Y | Y | Y | N |
| DHP | Y | N | Y | Y |
| Digi/Mini | Y | N | N | N |
| OPX-A | Y | Y | N | N |
| Auxiliary Analog Inputs | N | Y | Y | Y |
| CinePlex Compatible | Y | Y | Y | Y |
| Digital Inputs | Up to four 16 channel ports, individual TTL and/or event word data | Up to four 16 channel ports, individual TTL and/or event word data | Up to four 16 channel ports, individual TTL and/or event word data | Up to four 16 channel ports, individual TTL and/or event word data |
