Connect HST/32V with 32 Channel NeuroNexus® Probe

This adaptor allows you to connect one Plexon 32 channel headstage to one 32-channel acute probe from NeuroNexus® Technologies (N2T). The adaptor is designed for use with Rev 1, 2, or 3 32 channel acute probes from NeuroNexus. The adaptor features a mounting slot and holes to facilitate mounting the adaptor on a 5/16″ or 8 mm diameter stererotaxic rod.

Technical Specs

Typical Application:

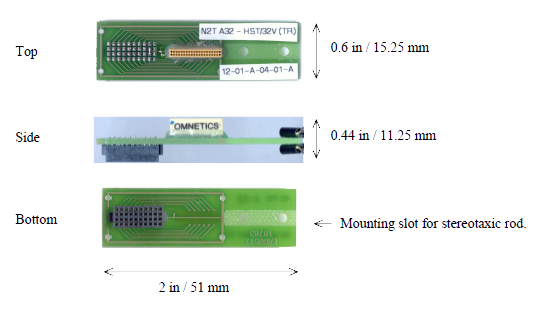

Specifications:

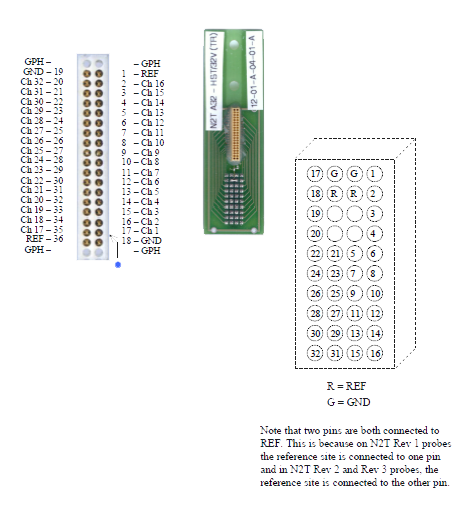

Pinout / Channel map:

  • Use this channel map together with the probe specific site map to determine the recording channel corresponding to each recording site on the probe.
