HELIOS™ – Wireless Optogenetic System

Head-Mounted Extra Light Infrared Optogenetic Stimulation

The HELIOS™ system is Plexon’s newest innovation in optogenetic technology which provides a wireless, lightweight, and reusable solution for high power pulsed optogenetic stimulation in freely moving small animals.

helios wireless optogenetic blue

Features Include:

  • Lightweight modules can be used with mice and rats without impeding behavior

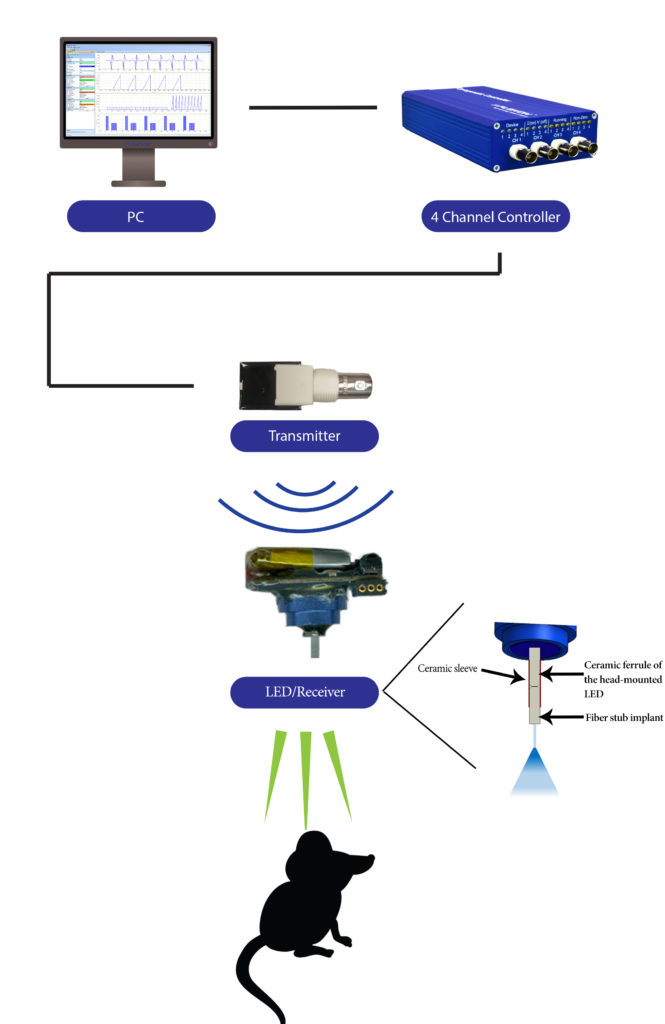

  • Infrared communication, controlled by the PlexBright 4 Channel Controller or TTL device, eliminates the need for patch cables
  • Charge and re-use the LED Module repeatedly in multiple subjects



Calculate Battery Life:

calculate battery life helios equation

Duty cycle is the percentage of time the LED light output is on relative to the total time the receiver is turned on

Example:

How long will the battery last on a Blue HELIOS LED module if you deliver 15mW pulses with a 5% duty cycle?

calculate battery life equation helios example

HELIOS LED Module Color
(Wavelength/Max Current)
Measured Output
 At the LED Module using 1ms pulses with 1% duty cycle
Available Light Output
Per charge; Based on minimum power outputs
Blue
(465nm/300mA)
55mW
2.3mWh
Green
(525nm/300mA)
15mW

0.63mWh
Lime
(550nm/500mA)
24mW

1.0mWh
Orange
(620nm/250mA)
22mW
0.92mWh
Technical Specifications and Options
Weight
2.8 grams (includes battery)
Dimensions
20 x 15 x 20 mm
Battery Life
Dependent on pulse intensity and duty cycle (see equation)
Transmission Range
2 feet (single transmitter; multiple transmitters can be purchased for larger arenas)
Ferrule Options
LC or FC
Charging Type (via USB)
15 minutes: 70% charged
1 hour: 90% charged
Pattern Source
PlexBright 4 Channel Controller or TTL device

Technical Specs and Data Sheets
