OmniPlex-S vs. Recorder-S
Two ways to run SiNAPS active pixel sensor probes. OmniPlex-S adds full online spike sorting across up to 4 probes; Recorder-S is a simpler, single-probe entry point for recording and visualization. Compare the two to find the right fit for your lab.
Request a Quote →Side-by-Side Comparison
Both systems pair with the same SiNAPS probe hardware — the difference is in what the data acquisition system does with the signal.
| Spec | OmniPlex-S | Recorder-S |
|---|---|---|
| Probes supported | Up to 4 SiNAPS probes simultaneously | 1 SiNAPS probe |
| Combined channels | Up to 2,048 | Up to 1,024 |
| Workflow | Online spike sorting, referencing, and visualization | Referencing and visualization — no online sorting |
| Analog inputs | Up to 32 | None |
| Digital inputs | Up to 32 | 16 |
| Digital outputs | Up to 16 | None |
| Sampling frequency | 40 kHz per channel | 40 kHz per channel |
| Video synchronization | Compatible with CinePlex | Not supported |
| Electrode size | 15 × 15 µm² | 15 × 15 µm² |
| Electrode pitch | 29 μm | 29 μm |
| RMS noise | 6.5 µV in action potential band | 6.5 µV in action potential band |
| Form factor | OmniPlex Chassis — rack-mounted or table-top | Single self-contained box |
SiNAPS Hardware
OmniPlex-S
- OmniPlex Chassis
- High Density Processor (HDP)
- SiNAPS Adaptor
- SiNAPS Probe
- Probe Tester Unit (PTU)
- System Tester Unit (STU)

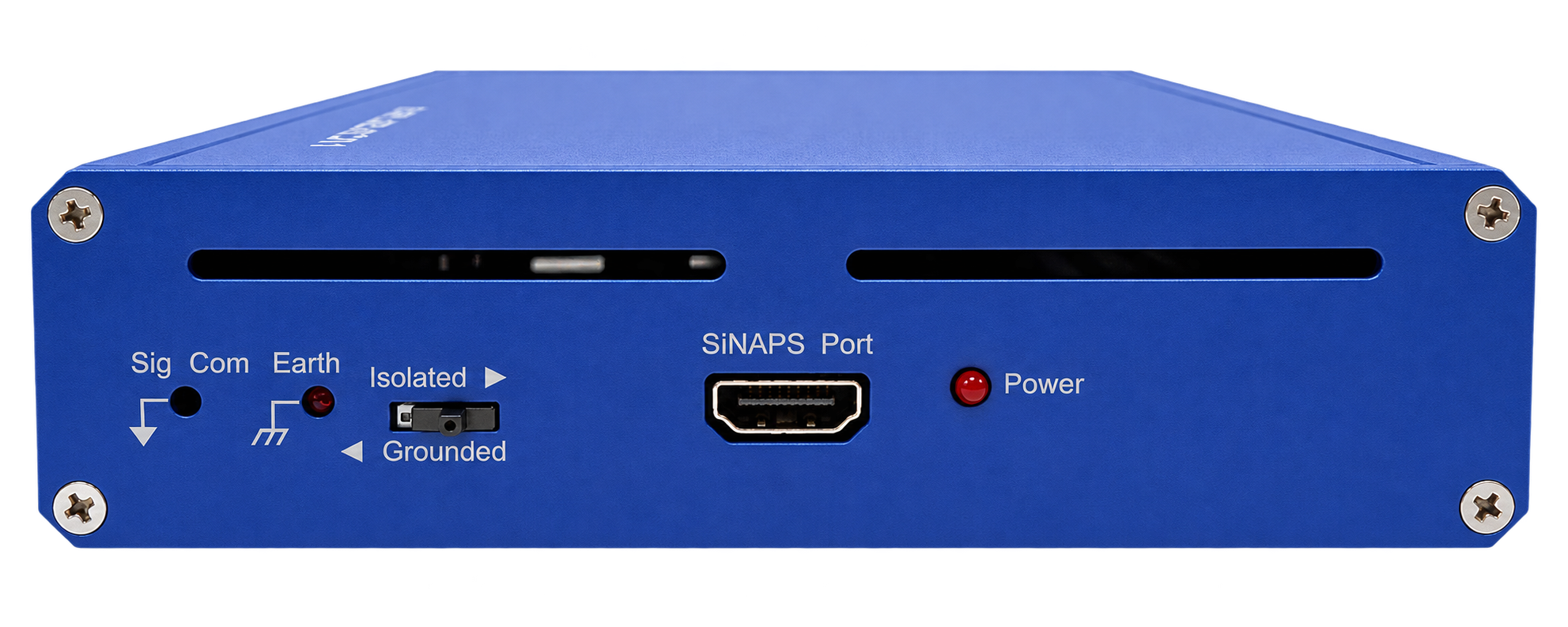

Recorder-S
- Recorder-S Box
- SiNAPS Adaptor
- Probe Tester Unit (PTU)
- System Tester Unit (STU)
Which One Is Right for You?
Choose OmniPlex-S if…
- You need online spike sorting while you record.
- You're running up to 4 SiNAPS probes at once, for up to 2,048 channels.
- You need video synchronization with CinePlex.
- You need analog and digital I/O to integrate with other systems like PlexBright.
Choose Recorder-S if…
- One SiNAPS probe and up to 1,024 channels covers your experiment.
- You want to record and visualize signal, without online sorting.
- You want a simpler, lower-cost entry point into the SiNAPS product line.
- You don't need video synchronization or multi-probe support.
