HELIOS® – Wireless Optogenetic System

Head-Mounted Extra Light Infrared Optogenetic Stimulation

The HELIOS® system is Plexon’s newest innovation in optogenetic technology which provides a wireless, lightweight, and reusable solution for high power pulsed optogenetic stimulation in freely moving small animals.

Features Include:

Lightweight modules can be used with mice and rats without impeding behavior
Infrared communication, controlled by the PlexBright 4 Channel Controller or TTL device, eliminates the need for patch cables
Charge and re-use the LED Module repeatedly in multiple subjects

90 Day Trial Program | HELIOS

Not sure if HELIOS is right for your Experiments?" We are offering a 90 day trial of HELIOS at no cost. Let us know which wavelength you need and a short summary of your experimental design.

Which wavelength do you need?*

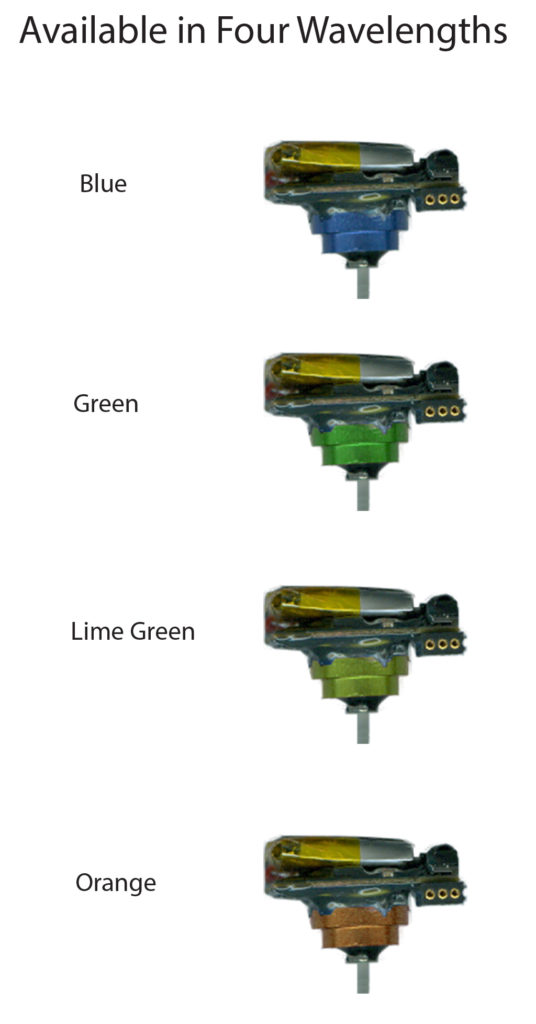

- Blue (465nm)
- Green (525nm)
- Lime (550nm)
- Orange (620nm)
- I would like two of the wavelength selected
Does the lab have a PlexBright 4-channel controller?*
- Yes
- No
Brief summary of the planned experiment:*
Name*
Email*
Name of Principal Investigator*
*Equipment will be sent at no charge on a 90 day loan agreement. The lab can purchase or return the equipment after 90 days.

90 Day Trial Program | HELIOS

Not sure if HELIOS is right for your Experiments?" We are offering a 90 day trial of HELIOS at no cost. Let us know which wavelength you need and a short summary of your experimental design.

Which wavelength do you need?*
- Blue (465nm)
- Green (525nm)
- Lime (550nm)
- Orange (620nm)
- I would like two of the wavelength selected
Does the lab have a PlexBright 4-channel controller?*
- Yes
- No
Brief summary of the planned experiment:*
Name*
Email*
Name of Principal Investigator*
*Equipment will be sent at no charge on a 90 day loan agreement. The lab can purchase or return the equipment after 90 days.

Head-Mounted Extra Light Infrared Optogenetic Stimulation

The HELIOS® system is Plexon’s newest innovation in optogenetic technology which provides a wireless, lightweight, and reusable solution for high power pulsed optogenetic stimulation in freely moving small animals.

Features Include:

Lightweight modules can be used with mice and rats without impeding behavior
Infrared communication, controlled by the PlexBright 4 Channel Controller or TTL device, eliminates the need for patch cables
Charge and re-use the LED Module repeatedly in multiple subjects

90 Day Trial Program | HELIOS

Not sure if HELIOS is right for your Experiments?" We are offering a 90 day trial of HELIOS at no cost. Let us know which wavelength you need and a short summary of your experimental design.

Which wavelength do you need?*
- Blue (465nm)
- Green (525nm)
- Lime (550nm)
- Orange (620nm)
- I would like two of the wavelength selected
Does the lab have a PlexBright 4-channel controller?*
- Yes
- No
Brief summary of the planned experiment:*
Name*
Email*
Name of Principal Investigator*
*Equipment will be sent at no charge on a 90 day loan agreement. The lab can purchase or return the equipment after 90 days.

90 Day Trial Program | HELIOS

Not sure if HELIOS is right for your Experiments?" We are offering a 90 day trial of HELIOS at no cost. Let us know which wavelength you need and a short summary of your experimental design.

Which wavelength do you need?*
- Blue (465nm)
- Green (525nm)
- Lime (550nm)
- Orange (620nm)
- I would like two of the wavelength selected
Does the lab have a PlexBright 4-channel controller?*
- Yes
- No
Brief summary of the planned experiment:*
Name*
Email*
Name of Principal Investigator*
*Equipment will be sent at no charge on a 90 day loan agreement. The lab can purchase or return the equipment after 90 days.

Calculate Battery Life:

calculate battery life helios equation Duty cycle is the percentage of time the LED light output is on relative to the total time the receiver is turned on Example: How long will the battery last on a Blue HELIOS LED module if you deliver 15mW pulses with a 5% duty cycle? calculate battery life equation helios example

Technical Specifications and Options

Weight	2.8 grams (includes battery)
Dimensions	20 x 15 x 20 mm
Battery Life	Dependent on pulse intensity and duty cycle (see equation)
Transmission Range	2 feet (single transmitter; multiple transmitters can be purchased for larger arenas)
Ferrule Options	LC or FC
Charging Time (via USB)	15 minutes: 70% charged 1 hour: 90% charged
Pattern Source	PlexBright 4 Channel Controller or TTL device

Helios LED Power Output

HELIOS LED Module	Measured Output¹	Available Light Output
Color (Wavelength/Max Current)	At the LED Module using 1ms pulses with 1% duty cycle	Per charge; Based on minimum power outputs
Blue (465nm/300mA)	55mW	2.3mWh
Green (525nm/300mA)	15mW	0.63mWh
Lime (550nm/500mA)	22mW	1.0mWh
Orange (620nm/250mA)	24mW	0.92mWh

¹Power values are measured using pulsed stimulation (1 msec pulses)

Technical Specs and Data Sheets

HELIOS Data Sheet

Support Videos

Helios: Getting Started with Wireless Optogenetics

Manuals/User Guides

HELIOS User Guide
